SRC542 4.5inch RC Hammer with 1 Year Warranty for High Performance Well Drilling and Mining

SRC542 4.5inch RC Hammer with 1 Year Warranty for High Performance Well Drilling and Mining
SRC542 4.5inch RC Hammer with 1 Year Warranty for High Performance Well Drilling and Mining SRC542 4.5inch RC Hammer with 1 Year Warranty for High Performance Well Drilling and Mining SRC542 4.5inch RC Hammer with 1 Year Warranty for High Performance Well Drilling and Mining SRC542 4.5inch RC Hammer with 1 Year Warranty for High Performance Well Drilling and Mining SRC542 4.5inch RC Hammer with 1 Year Warranty for High Performance Well Drilling and Mining SRC542 4.5inch RC Hammer with 1 Year Warranty for High Performance Well Drilling and Mining

Image Grand :  SRC542 4.5inch RC Hammer with 1 Year Warranty for High Performance Well Drilling and Mining

Détails sur le produit:
Lieu d'origine: Hunan, Chine
Nom de marque: Sollroc
Conditions de paiement et expédition:
Quantité de commande min: 1
Prix: $1,500
Contact

SRC542 4.5inch RC Hammer with 1 Year Warranty for High Performance Well Drilling and Mining

description de
Poids: 55 kg Matériel: Carbone
Type de traitement: Forgeage Taille de marteau: 4,5 pouces
Diamètre extérieur: 109.5mm Gamme de trous: 121-146 mm
Forme de bouton: balistique / semi-balistique / sphérique Longueur: 1191 mm
A mordu la jambe: SRC542 Thread de connexion: Remet 3,5 "-4", 4 "Metzke
Pression de travail: 1,5MPA-3.5MPA Consommation d'air: 12 m³ / min @ 1,7 MPa, 18 m³ / min à 2,4 MPa, 26 m³ / min à 3,0 MPa
Diamètre externe: φ109,5 mm Gamme de trous: φ113-φ130
Poids (moins de bit): 51.0kg
Mettre en évidence:

SRC542 RC Hammer

,

4.5inch RC Hammer

,

1 Year Warranty RC Hammer

Sollroc Reverse Circulation Rock Drilling SRC542 RC Hammers for Mining Well Drilling
Reverse Circulation (RC) Drilling is a clean and environmentally friendly method of deep foundation installation. It employs dual-wall drill rods, comprised of an outer drill rod with an inner tube. As sections of drill rod are screwed together, the inner tubes overlap and seal with O-rings, creating a continuous path for drill tailings to be transported from the bit face to the surface.
Technical Specifications
Length (less bit) 1191mm
Weight (less bit) 51.0kg
External diameter φ109.5mm
Bit shank SRC542
Hole range φ113-φ130
Connection thread 3.5"-4" Remet
4" Metzke
Working pressure 1.5Mpa-3.5Mpa
Air consumption 1.7 Mpa | 12 m³/min
2.4 Mpa | 18 m³/min
3.0 Mpa | 26 m³/min
Product Features
  • Manufactured using premium hardened metals for extended service life
  • Maximum material recovery, up to 98% efficiency
  • Eliminates cross contamination of samples
  • Maintains performance when using water, foam, oil, or polymers
  • Optimized for underwater drilling operations

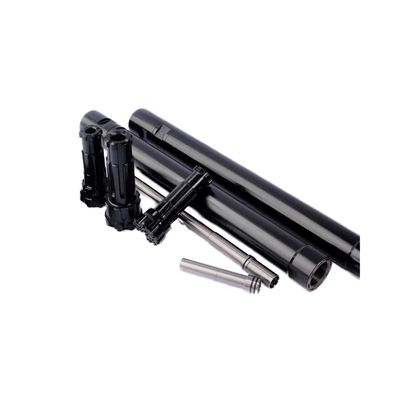

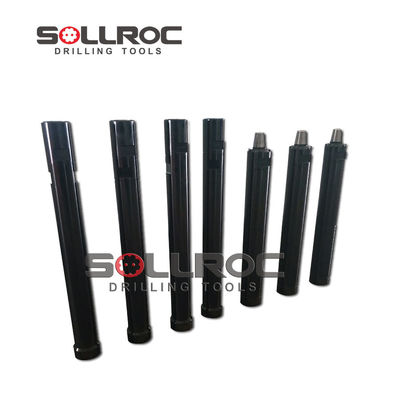

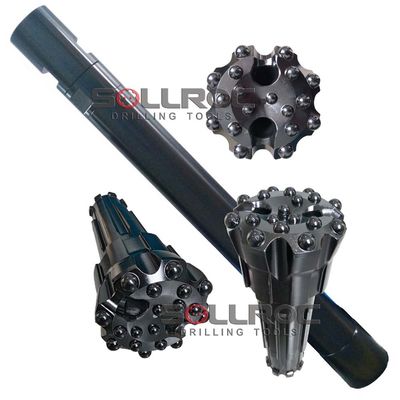

Product Images
SRC542 4.5inch RC Hammer with 1 Year Warranty for High Performance Well Drilling and Mining 0 SRC542 4.5inch RC Hammer with 1 Year Warranty for High Performance Well Drilling and Mining 1 SRC542 4.5inch RC Hammer with 1 Year Warranty for High Performance Well Drilling and Mining 2
Delivery & Shipping
Delivery Time:
15-25 days (3-5 days if in stock)
Shipping Methods:
By Air, By Sea, or By Express
Package:
Plywood wooden cases + Pallet
About Our Company
We are a leading manufacturer of rock drilling tools based in Changsha, Hunan, China, with 20 years of experience in producing DTH hammers, bits, drill pipes, RC hammers, and related equipment. Our commitment to high quality, professional service, and competitive pricing has earned us an excellent reputation among customers worldwide, including France, Spain, Italy, South Africa, Iran, Malaysia, and Australia.

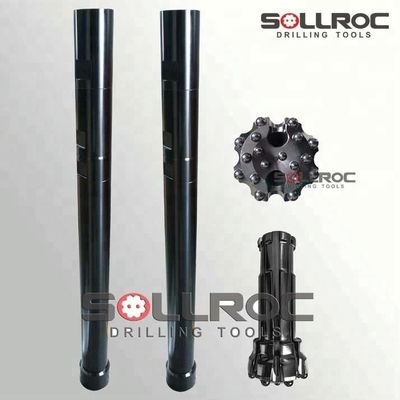

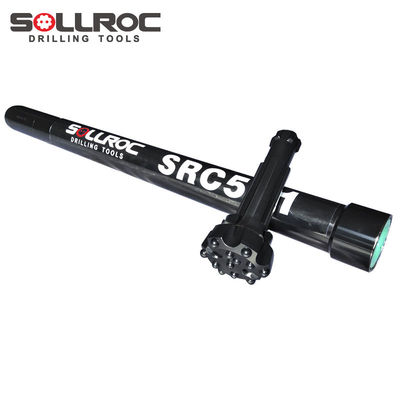

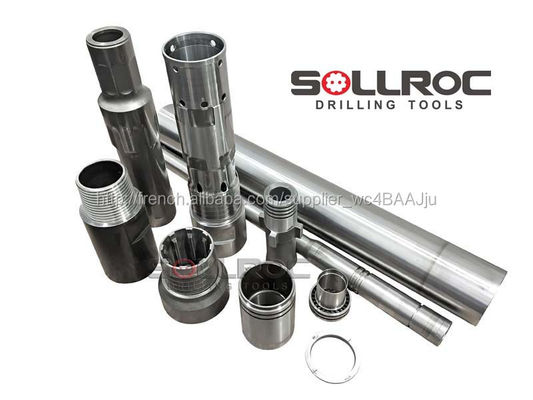

Related Products
