5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications

5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications
5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications 5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications 5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications 5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications 5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications 5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications

Image Grand :  5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications

Détails sur le produit:
Lieu d'origine: Hunan, Chine
Nom de marque: SOLLROC
Conditions de paiement et expédition:
Quantité de commande min: 1
Prix: CN¥1,399.58
Contact

5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications

description de
Poids: 16 KILOGRAMMES Matériel: Acier carbureux
Type de traitement: processus de traitement thermique et d'usinage TAILLE: 5 1/2''-6''
Diamètre: 140-152mm Compresseur d'air: Bits DTH à haute pression d'air
Taille de tige: 133 mm Diamètre du bit: 5 1/4"
trous d'air: 2 Boutons de mesure: 7×φ16
Les boutons avant: 6×φ14 Numéro de pièce: QL50-130
Taille de tige: 140mm Diamètre du bit: 5 pouces et demi.
Boutons de mesure: 7×φ18
Mettre en évidence:

5 Inch DTH Drill Bit

,

Carburized Steel Down The Hole Bit

,

Water Well Drilling DTH Hammer Bit

SOLLROC QL50 5-Inch DTH Bit for Water Well Drilling
Product Overview

The DTH bit is the primary tool for cutting rock formations, and drilling performance is directly dependent on bit quality. Down-the-hole bits endure severe stress from striking pistons and abrasive cuttings passing at high velocity. When selecting the optimal bit, balance penetration rate against service life. In certain applications, sacrificing some bit life for increased penetration can be justified—a 10% increase in penetration typically offsets at least a 20% reduction in bit life.

Manufacturing Expertise
  • Over 10 years of specialized experience in drilling tools and spare parts manufacturing
  • Advanced production technology and equipment
  • Technical team with more than 13 years of professional experience
Technical Specifications
DTH Bits Shank Bit Diameter Air Holes Gauge Buttons Front Buttons Weight (Kg) Part No.
QL50 133mm / 5 1/4" 2 7×φ16 6×φ14 15.5 QL50-130
QL50 140mm / 5 1/2" 2 7×φ18 7×φ14 16.0 QL50-140
QL50 146mm / 5 3/4" 2 8×φ18 7×φ14 16.5 QL50-146
QL50 152mm / 6" 2 8×φ18 8×φ14 17.0 QL50-152
QL50 165mm / 6 1/2" 2 8×φ18 8×φ16 19.0 QL50-165
Product Features & Applications
DTH button bits Water well drilling Geothermal drilling Rock drilling Ground drilling Drilling tools Micropiling DTH hammers Unstable terrain drilling

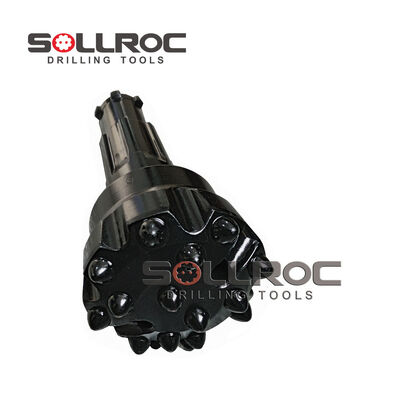

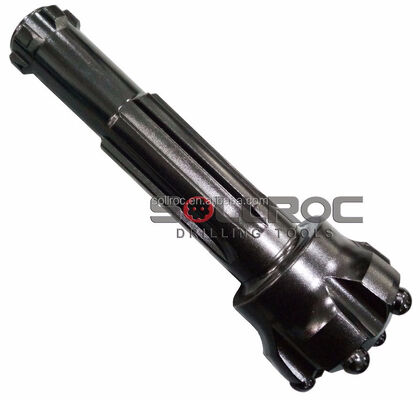

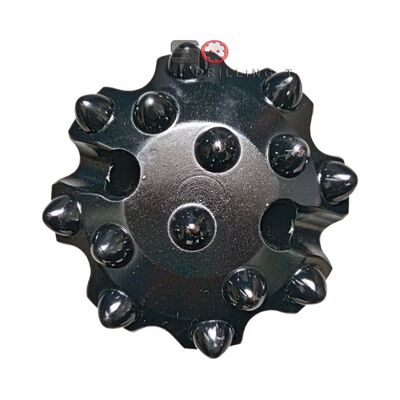

Product Images
5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications 0 5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications 1 5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications 2
Shipping & Packaging

Shipping Methods: By Air, By Sea, or By Express

Packaging: Ply-wooden cases with pallet for secure transportation

Related Products
DTH Hammers

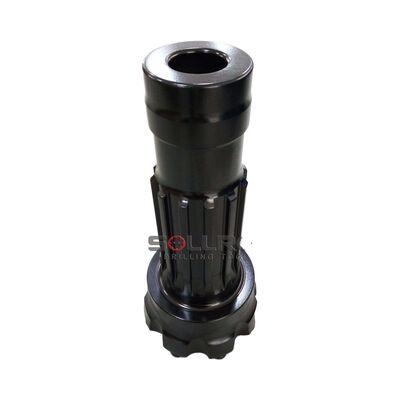

5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications 3 5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications 4 5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications 5
DTH Bits

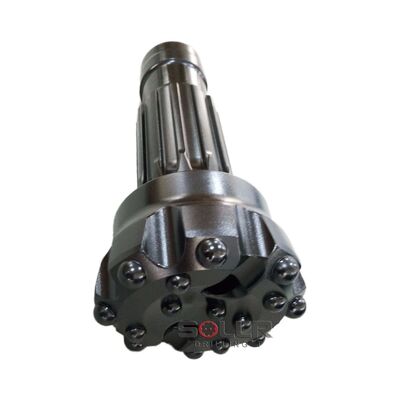

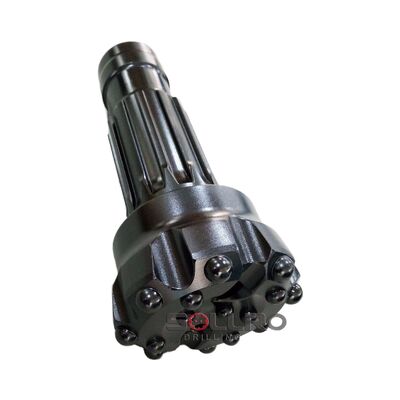

5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications 6 5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications 7 5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications 8
Additional Drilling Equipment

RC Hammers • RC Bits • Button Bits • ODEX Systems
